Technical Specifications
- Unit of Measure:
- Each
- Width (cm):
- 71.00
- Height (cm):
- 132.00
- Depth (cm):
- 52.00
- Brand:
- Birdie
Description

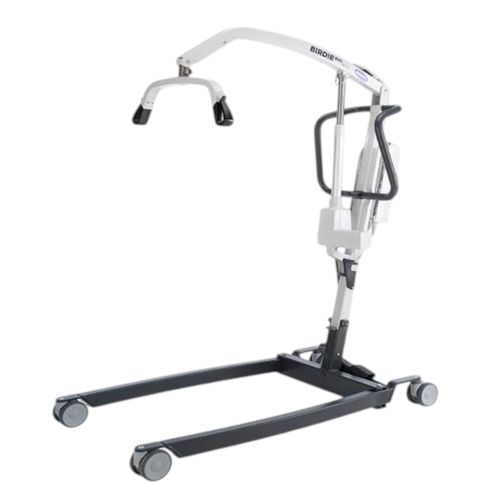

Birdie Evo Mobile Hoist – 2 Point Fixed Spreader Bar with Electric Leg Opening
The Invacare Birdie Evo Mobile Hoist is a next-generation patient transfer solution designed to enhance safety, comfort, and ease of use for both caregivers and users. Featuring an electrical leg opening mechanism and a 2-point fixed spreader bar, the Birdie Evo offers a high-performance lifting range that supports transfers from beds, chairs, wheelchairs, and even from the floor.
Built with Invacare's latest ergonomic innovations, the Birdie Evo provides maximised space and comfort during lifting, reducing the risk of knee injury and enhancing patient stability. The integrated Smartlock™ quick-release system allows for tool-free spreader bar changes, and the unit folds easily for transport and storage without any need for disassembly.
Weighing only 40kg, it is remarkably lightweight yet robust, supporting users up to 180kg. Its curved boom design ensures clear eye contact between caregiver and user throughout the lift, promoting reassurance and communication.
Features
Key Features for the Birdie Evo Mobile Hoist:
Lightweight & Portable: Weighs only 40kg – easy to fold, transport, and store.
High Weight Capacity: Safe working load (SWL) of up to 180kg.
Optimised Lifting Range: Enables smooth transfers from floor, bed, or chair.
Electric Leg Opening: Effortless base leg adjustment at the push of a button.
Smartlock™ System: Quick and safe spreader bar replacement without tools.
User-Friendly Sling Hooks: Designed for easy and secure sling attachment by hand.
Integrated Movement Dampener: Reduces swinging and rocking for enhanced user comfort.
Ergonomic Push Bar: Shaped to reduce strain and improve control during manoeuvring.
Compact Folding Design: Folds flat without tools – ideal for mobile carers and tight storage spaces.
Curved Boom Structure: Maintains eye contact and promotes natural interaction during transfers.
Technical Specifications:
Maximum User Weight: 180 kg
Product Weight: 40 kg
Base Length: 1220 mm
Base Width (Legs Closed): 640 mm
Base Width (Legs Open) – Internal: 1020 mm
Base Width (Legs Open) – External: 1100 mm
Reach at 600 mm Height: 630 mm
Lifting Range: 1240 mm
Height at Sling Hook-up (Min–Max): 415 mm – 1660 mm
Turning Diameter: 1400 mm
Front / Rear Castor Diameter: 100 mm / 100 mm
Height to Upper Edge of Legs: 115 mm
Ground Clearance: 35 mm
Folded Height: 470 mm
Folded Length: 1320 mm
This hoist is ideal for nursing homes, hospitals, community care, and private households, offering an advanced, easy-to-use solution for daily patient mobility and transfers.
Need Help Choosing the Right Mobile Hoist?
Still unsure if the Birdie Evo Mobile Hoist is the best fit for your needs? Whether you’re caring for yourself, a loved one, or managing patient care, our friendly team is here to assist you.
Call us on 01323 445 056 or email [email protected] for fast and friendly assistance.
Birdie Evo Mobile Hoist Electric Legs 2 Point Spreader Bar Detachable Battery
The Birdie Evo Mobile Hoist with Electric Legs and 2 Point Spreader Bar Detachable Battery from Medirite is the next generation in patient lifting solutions has been designed to offer a high feature-set of options that have been blended with new technologies to provide maximum comfort and security when lifting or transferring a patient to or from a bed, chair, or even the floor. Based on the renowned Birdie, this electric hoist range has been customer insight-led, encompassing everything that was valued on the Birdie while bringing in new features to further enhance the client and carer experience.
